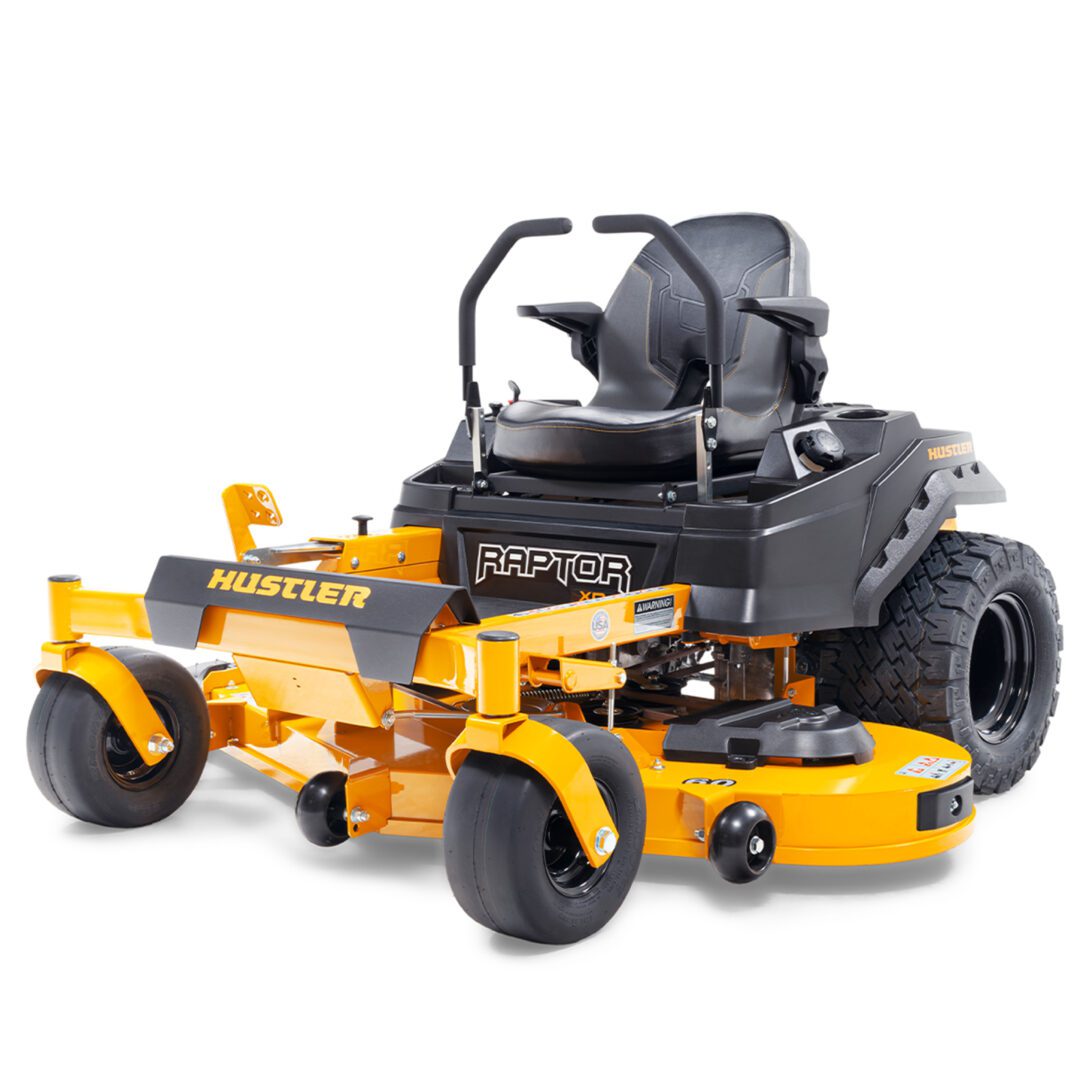

Raptor XD 60″

RRP $16,999.00

The Raptor XD is the perfect zero-turn mower for homeowners with properties up to five acres. Featuring a powerful 24hp Kawasaki V-twin engine and a durable 60-inch fabricated cutting deck.

We’ve invested decades and countless hours refining our durable fabricated decks to ensure a quality crisp, clean cut. The Raptor XD is supported by a 3-year/ 300-hour limited warranty, offering peace of mind and long-lasting quality.



  • 60″ Cutting Width
  • 24HP Kawasaki V-Twin Engine
  • 3 Year / 300 Hr Domestic Warranty
  • 3 Year / 300 Hr Commercial Warranty.
Find a Dealer

Description

The Raptor XD 60 is designed as a premium residential zero-turn mower built for larger properties, combining heavy-duty construction with strong cutting performance and operator comfort. Powered by a Kawasaki V-twin engine (up to 24 HP depending on configuration), it delivers smooth, reliable power with a top mowing speed of up to 12 km/h (7.5 mph).

Built for durability, it features a fully welded fabricated steel deck and a one-piece 1.5″ x 3″ tubular steel frame for long-term strength under demanding use. The 60-inch cutting deck allows efficient coverage of large lawns, reducing mowing time while maintaining a clean, even cut.

Operator comfort is a key focus, with a high-back bolstered seat with armrests, a wider stance for stability, 20-inch VersaTrac drive tires for traction, and a rubber floor mat to help reduce vibration during operation. SmoothTrak steering enhances control around obstacles, while a foot-operated deck lift allows quick and easy height adjustments.

The Raptor XD 60 includes a fuel capacity of approximately 13.2 litres (3.5 gallons), supporting longer mowing sessions without frequent refuelling.



*Images are used for illustration only and may show different models from the range with different specifications.

Additional information

Weight 309 kg
Dimensions 1806 × 1636 × 1110 mm
Power Petrol
Engine Model 24HP Kawasaki FR730V Engine. Air cooled
CC Rating 726cc
Fuel Tank Size 13.2 L
Deck Width 152cm / 60"
Deck Type 11 Gauge Fabricated Cutting Deck
Cutting Height Range Adjustable 38-114mm
Mulch Function Optional
PTO Clutch Electronic
Blades Triple
Drive System Dual Hydro-Gear ZT2800
Speed 12 Km/h
Tow Hitch Optional
Additional Features Automatic Park Brake, Bolstered Mid Back Seat with Armrests, Cup Holder, Open rear design for easy engine maintenance
Warranty - Domestic 3 Year / 300 Hr
Warranty - Commercial 3 Year / 300 Hr
